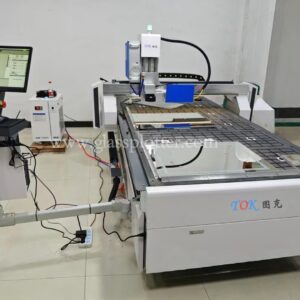

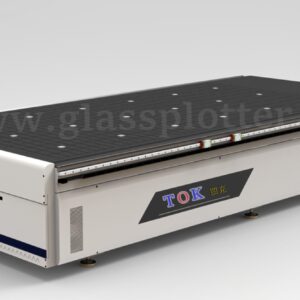

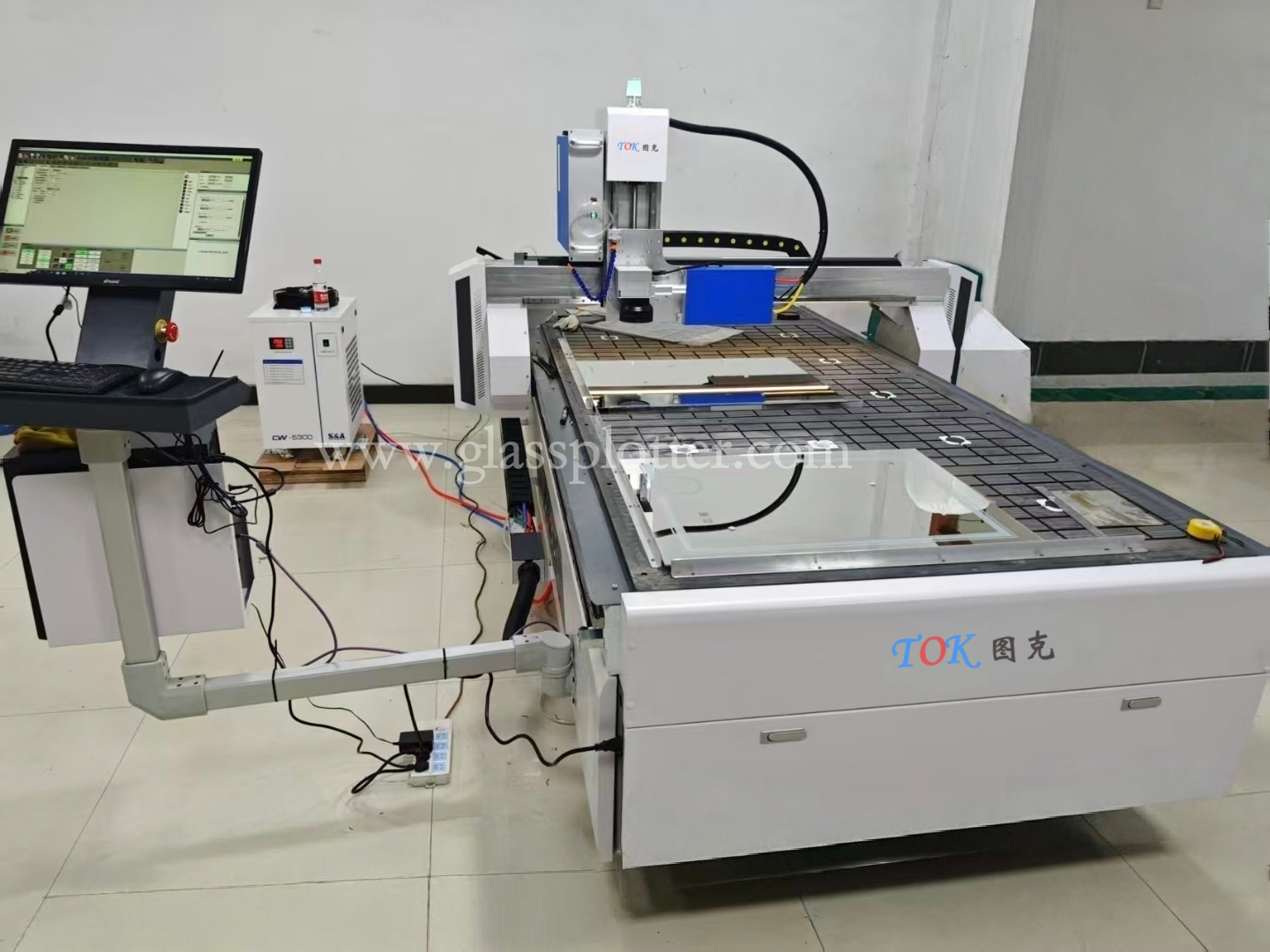

| Machine basic parameters |
| 设备型号 Machine model | T1325, T1530, T2030, T2436, T2645, T3380, etc. |
| 加 工 方式 Working mode | 光纤 激光 |
| 加工尺寸Working size | 1300*2500mm, 1500*3000mm, 2000*3000mm, 2400*3600mm, 2600*4500mm, 3300*8000mm, etc. |
| 占地面积Floor space | 3000*2100*900MM |
| 设备重量Weight | 900KG |
| 总功率 Total power | 3 KW |
| 激 光 器 Laser | Fiber laser |
| 激光功率 | MOPA RION 140W |
| 激 光 器 理 论 寿 命 Theoretical life of laser | 100000 hours. (mean if it works 24 hours day by day, it can run 12 years, without stopping. ) |
| 激 光 波 长 Optical maser wavelength | 1055-1070nm |
| 标 刻 范 围 Engraving range | 50*50mm |
| 机械重复精度Mechanical repetition accuracy | ≤±0.25mm |
| 激光重复精度Laser repetition accuracy | ≤±0.002mm |
| 雕刻线速Engraving line speed | ≤13000mm/s |
| 运动系统Motor system | Imported laser control system+ high precision servo motor system |
| 排烟系统 | 烟 道 直 排 |
