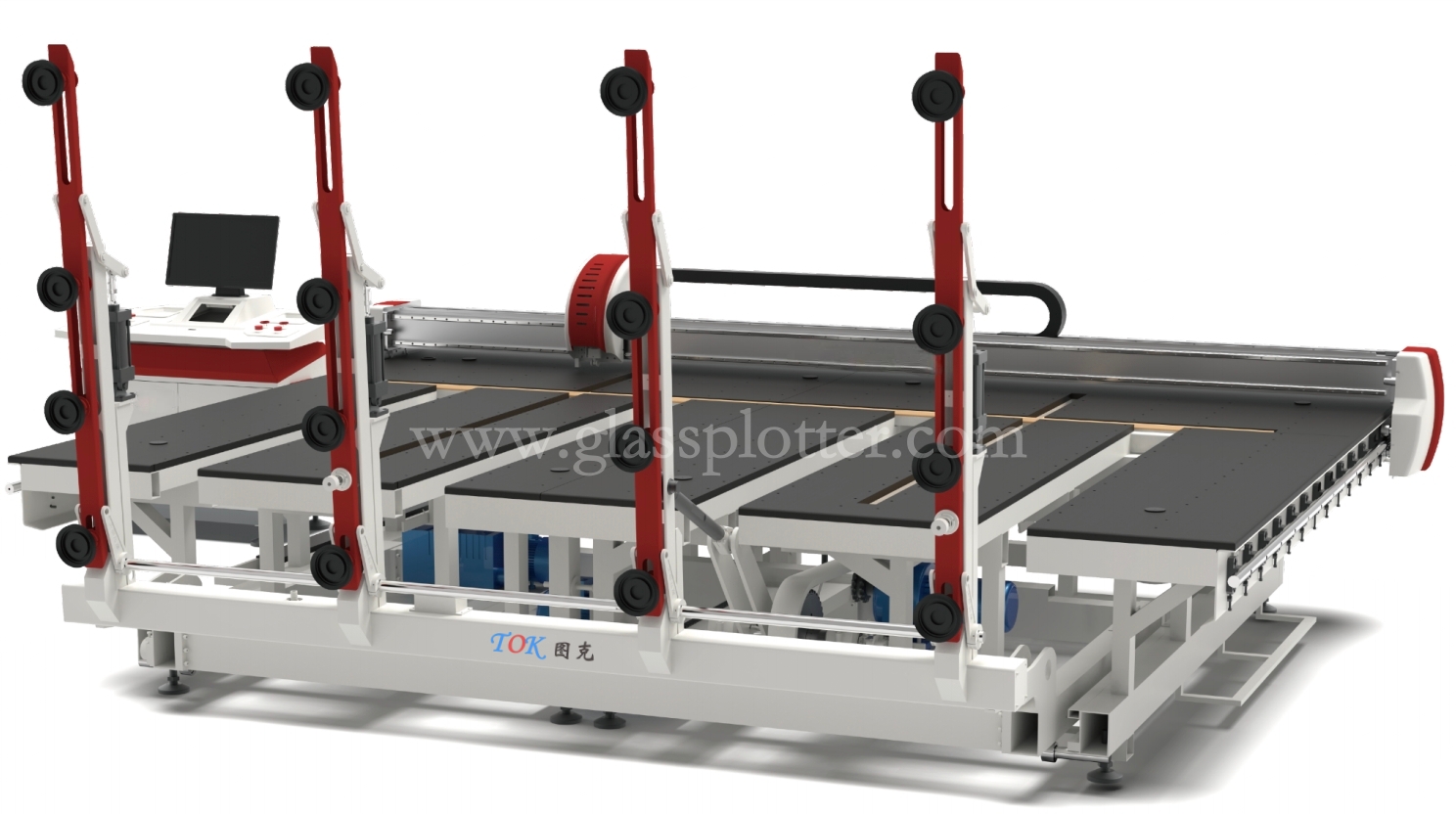

Glass loading and cutting machine

Model:  T3826,   T3829,   T2721

Size:  3660*2440mm,  3660*2800mm,  2700*2100mm

Cutting technology and automatic oil supply

Professional glass cutting control system realizes automatic cutting of straight and special-shaped glass, greatly improving glass cutting efficiency.

the cutting head is controlled by an electromechanical precision pressure valve. The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the cutting phenomenon caused by glass quality problems .

When cutting glass, the cutting oil is automatically filled using pneumatic pressure control, and moves synchronously with the cutting head through the PLC control system .

Optimization software and special-shaped libraries

Compatible with the standard G code of Italian OPTIMA optimization software and domestic Guiyou software: achieving versatility in processing files in different formats.

Glass cutting optimization program is specially designed to cut flat glass into workpieces of different sizes, improving the cutting rate of glass and reducing the waste of original glass sheets.

The special-shaped glass cutting library integrates various special-shaped glass patterns and templates to meet the needs of different glass cutting.

With may functions as below:

Automatic edge positioning and intelligent special-shaped scanning

Air floating countertop

Breaking table and auxiliary breaking ejector rod

Glass conveying

Automatic rail lubrication

Servo motor direct drive structure

Automatic voltage control and voltage detection

Voltage detection

Automatic labeling ( customized)

High performance LOW-E film removal device( customized)
