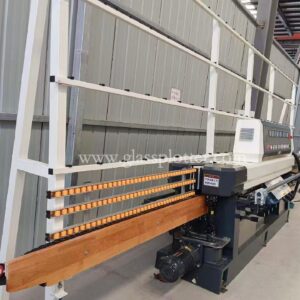

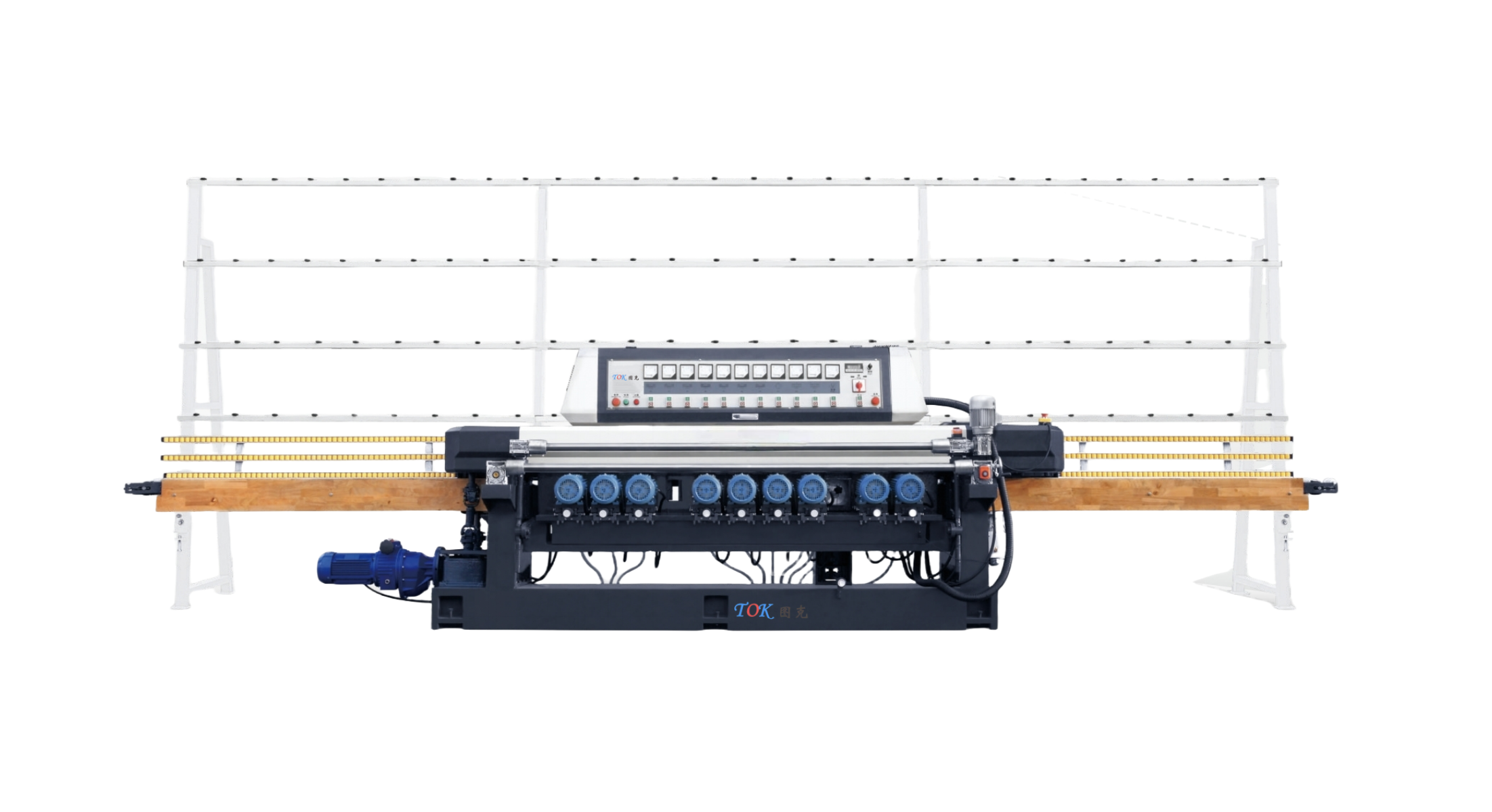

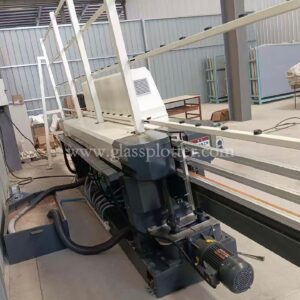

Glass beveling machine

Product Introduction:

Process different thickness glass.

Coarse grinding, fine grinding and polishing are completed at one time.

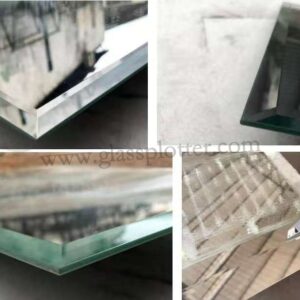

The polishing surface is close to bright and clean degree of glass matrix.

Advanced structure, high working precision, easy operation, continuous processing ,makes it

to be a necessary equipment for glass deep processing.

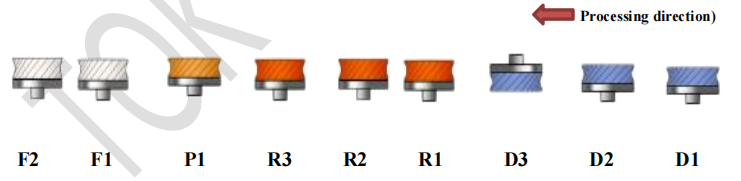

Polishing wheel configuration diagram:

D: Diamond wheels.（for coarse grinding）

R: Resin wheels. ( for fine grinding)

P: Polishing wheels. ( for brightening )

F: Felt wheels. ( for increased brightness)

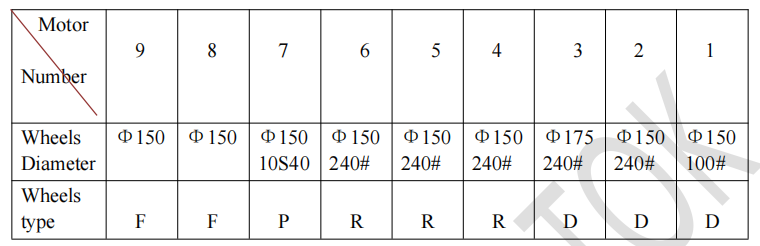

Wheel parameters:

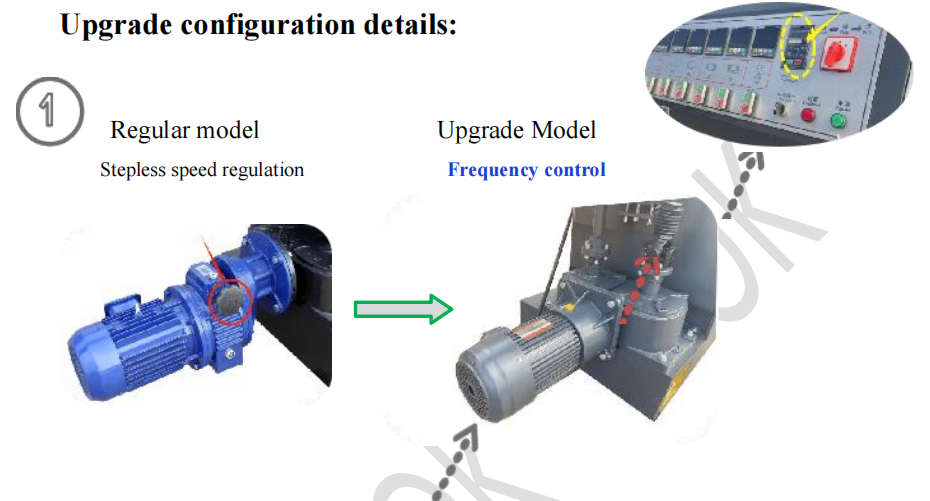

Advantages of Frequency control：

1. Easy operation (As shown in the electric box panel).
2. Fast response speed (Reduced deceleration or acceleration buffer time).
3. Stable performance.
4. Almost no maintenance work required.
5. Long service life.

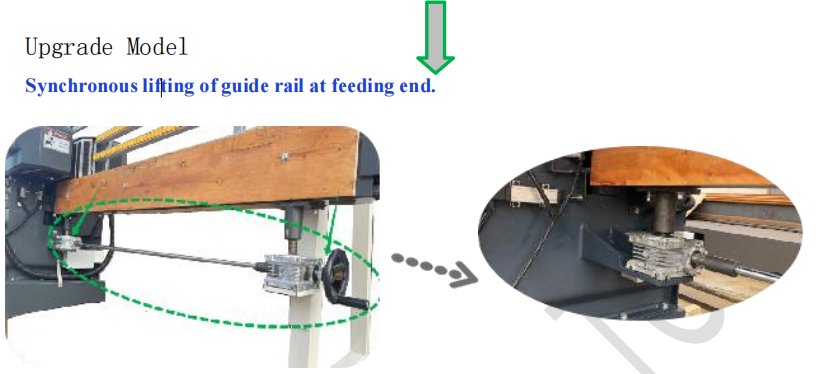

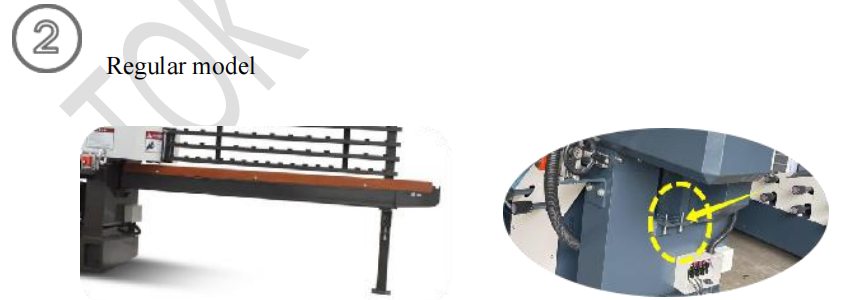

Advantages of Synchronous lifting of guide rail at feeding end:

1. Adjustment is more convenient, which improves work efficiency.
2. Higher accuracy than conventional models.
3. Hidden usage. When the grinding wheel is worn, only need to lower the height, saving the work of adjusting each grinding head

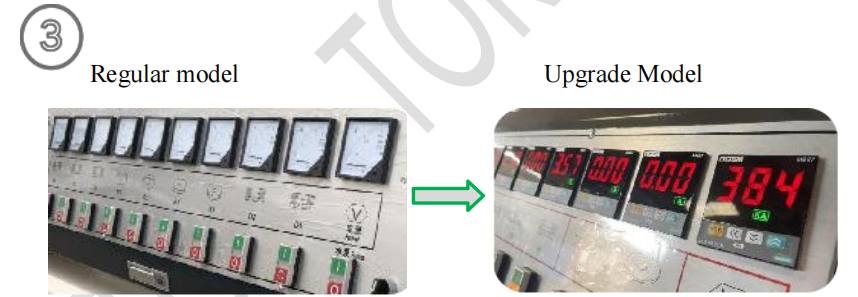

Advantages of Mechanical Digital Display Ammeters and

Voltmeters：

1. Digital display is more intuitive.
2. Mechanical ammeter and voltmeter respond more accurately.
3. More functions to facilitate the adjustment of parameters.
